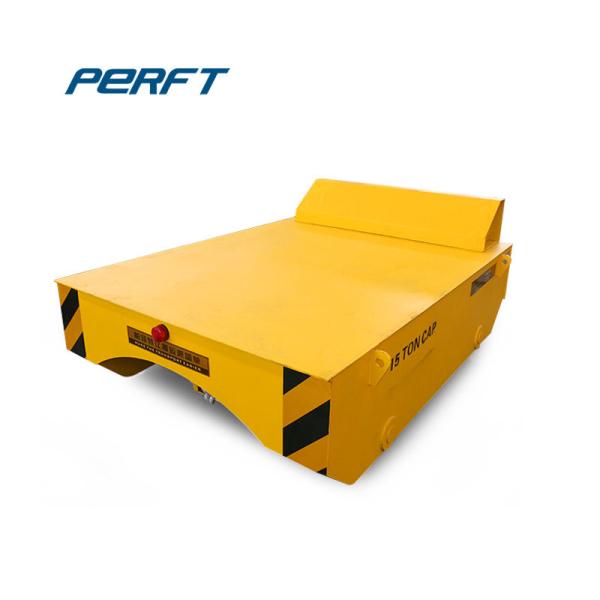

KPT Series Bed Rail Heavy Duty Flatbed Carts for Mold Transportation
Working principle:
KPT series track flatbed trucks mainly supply electric power from the motor. The power supply comes from good quality cable lines to achieve flat car driving. This series of track flatbeds uses AC motor drive to control the operation of the track flatbed. The 380V ordinary power supply provides power to the motor through the cable to realize the start, stop, forward and reverse of the flat car. KPT series ground climbing is a short-distance transportation and handling equipment. It mainly uses cable power supply and uses AC motor drive to control the running of the flat car.
Selection reference
This series of flat cars is suitable for occasions with a running distance of less than 20m, a high frequency of use and a low vehicle height. Due to the simple mechanism and low cost, it is a common track flat car with a cross-span of the workshop. Tows can be used to reduce cable wear in slower speeds. The running distance of this series of flat cars should not be too long, generally less than 20m. Due to the simple mechanism and low cost, it is a common track flat car in the workshop. It can be used in the occasion of short running distance and slow running speed. To reduce cable wear, it is suitable for occasions with high frequency of use and low vehicle height. The running distance of this series of flat cars is generally less than 20m. In the case of slow running speed and short running distance, the drag chain can be used to reduce the wear of the cable. The mechanism is simple and the cost is low. It is a common cross-track flat in the workshop. The car is suitable for occasions with high frequency of use and low vehicle height.
| Rated load(t) | BJT-2t | BJT-5t | BJT-10t | BJT-20t | BJT-30t | BJT-40t | BJT-50t | BJT-63t | BJT-80t | BJT-100t | BJT-150t |
| Wheel base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Wheel quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor power(Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running distance(m) | 25 | 25 | 25 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Rail inner gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Reference weight(t) | 2.3 | 3.3 | 3.8 | 5.5 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 | 26 |
Detailed part description:
1. This series of electric flat cars has strong carrying capacity.
2, the series of electric flat car table deformation is small
3. The flatness of the series of electric flat cars is higher.
4, the whole car is composed of 4 wheels
5, the vehicle runs smoothly
6, the car starts slowly and accelerates
7, electric flat car can achieve the ability to climb
8, electric flat car powered by tow cable
9. This series of electric flat cars has a short running distance.
