Slag Pot Industrial Ladle Transfer Car Heat Resistant For Metallurgy Engineering

Name: Slag Pot Industrial Ladle Transfer Car Heat Resistant For Metallurgy Engineering
Brand: PERFECT
Price: 1 USD

China Slag Pot Industrial Ladle Transfer Car Heat Resistant For Metallurgy Engineering factory

Brand Name : PERFECT

Model Number : BTL

Certification : CE, SGS, ISO

Place of Origin : Xinxiang, China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 Sets Per Month

Delivery Time : 45 Days

Packaging Details : The whole cart is package with tarp, and parts will be packed by wood case

Powered Source : Trailing Cable

Operation Mode : Pandent and Remote Controller

Cart Frame : Q235B

Rail Gauge : 2000mm (Customized)

Color : Yellow/Customized

Working Time : Whole Day

Wheel Type : Cast steel wheel

Safrty Device : Buffer, Alarm light, Emergency Stop Buttons

Special Function : Anti-Explosion, Heat-Resistant, Lifting, Dumpling

Dimension : Customized

Contact Now

200 Ton Anti-explosion Slag Pot Ladle Transfer Car for Metallurgy Engineering

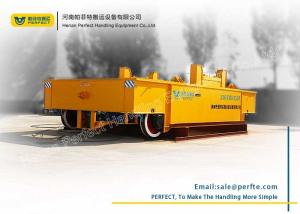

Description of Slag Pot Ladle Transfer Car

The slag pot ladle transfer car is specially designed to load the high-temperature ladle. This kind of car has strict requirements on safety and ability of anti-high temperature, so the materials, driving system and electrical control of the car should be specially designed. The traction motor is designed in slow start and stop to reduce the inertia of the slag pot ladle transfer cart and avoid molten steel or slag from splashing. The heat insulating material is used in the ladle transfer car to resist the high temperature. Usually, two motors are prepared, so when one is damaged by the ladle’s high temperature the other can be used to continue the work. The slag pot ladle transfer cart is available in inflammable and explosive environment.

Application of Slag Pot Ladle Transfer Car

The slag pot ladle transfer car is used to transfer hot metals such as steel or aluminum in the foundry plant used to transport the hot ladle in the steel mill. Besides that, the slag pot ladle transfer cart has a wide application in quarries, mine, machine manufacturing and furnace transfer. It can be used in the high-temperature environment.
Slag Pot Industrial Ladle Transfer Car Heat Resistant For Metallurgy Engineering

Main Features of Slag Pot Ladle Transfer Car

Hot metal ladle shuttle

More than 10 years manufacturing experience
Iso9001 certified
Competitive cost and quality
Custom products
Buffer against collision

Slag Pot Industrial Ladle Transfer Car Heat Resistant For Metallurgy Engineering

Parameters of Slag Pot Ladle Transfer Car

Model		BTL-2t	BTL -20t	BTL -50t	BTL -100t	BTL -150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Company Strength

We design transfer cars for all kind of industries. Our versatility to manufacture this vehicle is proven by our experience and adaptations. These transfer cars can be made according to our clients’ needs and with clear commitment to meet them.

Slag Pot Industrial Ladle Transfer Car Heat Resistant For Metallurgy Engineering

Q & A

How to choose the suitable transfer cart?

All of our transfer carts can be customized as client's requirement, for choosing the most suitable transfer cart, please kindly provide the following information:

What martial/cargo the transfer cart shuttle?
What capacity do you need?
What kind of ground the transfer cart operate on? (rails or cement floor)
What the table size do you need? (length, width and height)
How about the running distance?
How many working hours in per day?
