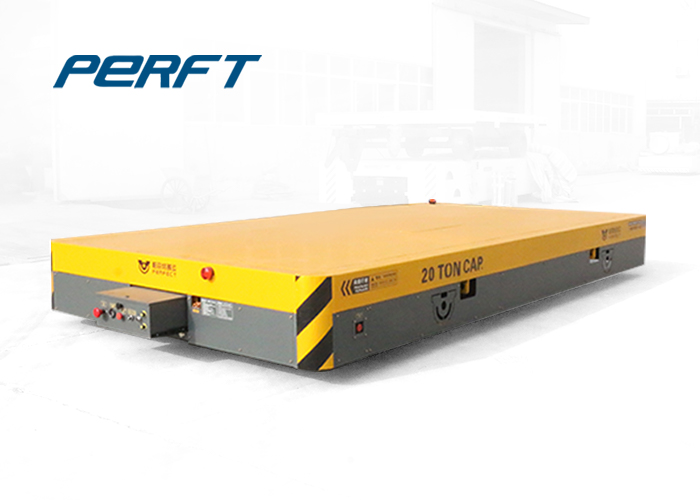

Yellow Battery Transfer Cart Motorized Trackless Bogie Handling Coil For Workshop

Product Categories

Henan Perfect Handling Equipment Co., Ltd.

Contact Now

Yellow Battery Transfer Cart Motorized Trackless Bogie Handling Coil For Workshop

Name: Yellow Battery Transfer Cart Motorized Trackless Bogie Handling Coil For Workshop
Brand: perfte
Price: 7000 USD

China Yellow Battery Transfer Cart Motorized Trackless Bogie Handling Coil For Workshop factory

Brand Name : perfte

Model Number : Battery trackless cart

Certification : ISO 9001,CE,CCPIT

Place of Origin : Xinxiang-Henan-China

MOQ : 1

Price : $7000-$12000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 60 set per month

Delivery Time : 5-8 work days

Packaging Details : The cart's body is packed with a tarp, and the wheel and parts of the cart will be packed with wooden case.

Rated load (T) : 1-150t

table size : 6500 x 4200

running speed : 0-20

ground requirement : cement floor

running distance : 100m

control mode : push button control, wireless remold

Motor Power (Kw) : 1.5

Battery Capacity(Ah) : 180-600

charger function : automatic charging

ground clearance : 50

Contact Now

Battery transfer cart trackless bogie motorized trolley for the workshop

Description

The trackless transport cart usually chose the battery, cable, motor as the power source. All the carts equipped with warning alarm and security detection apparatus and the car would stop immediately if there are any obstacle or pedestrian in the running path of the car. Also, we will provide an intelligent automatic rapid charge with the car. Positioning fixture, lift platform, and other devices are optional to meet different demands on various occasions. The PLC is also alternative if it’s necessary. Yellow Battery Transfer Cart Motorized Trackless Bogie Handling Coil For Workshop

Advantages
BWP series transfer car has the advantages of easy operation, big starting torque, steady running, noiseless turning, etc.
Additionally, it features a simple structure. Without rails, the car can turn freely.

Technical parameters:

Model		BWP-2T	BWP-10T	BWP-20T	BWP-30T	BWP-50T	BWP-63T	BWP-150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground Clearance (mm)		50	50	50	50	50	75	75
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Battery Capacity(Ah)		180	160	180	250	330	400	600
Battery Voltage(V)		24	48	48	48	48	48	72
Running Time When Full Load		4.32	4.8	4	3.5	3.3	3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2

Yellow Battery Transfer Cart Motorized Trackless Bogie Handling Coil For Workshop

Successful case

A Shan Xi company orders BWP-10T trackless rubber-tired transfer carts in 2018. This order transport products are large cable trays. The weight of a single cable tray is about 7.5ton, the diameter of the cable tray is 2-2.5 meters (trackless rubber-tired transfer carts installs V type frame for the convenience of placing cable tray). The trackless rubber-tired transfer carts transfer the cable tray from the assembly line to the warehouse when the cable tray and cable are finished, which pass two span workshop and the door of the factory.

Yellow Battery Transfer Cart Motorized Trackless Bogie Handling Coil For Workshop

Why choose us?

Compare with other products

Yellow Battery Transfer Cart Motorized Trackless Bogie Handling Coil For Workshop
