40T Steel Trackless Battery Transfer Cart For Industrial , Customize Table Size

Product Categories

Henan Perfect Handling Equipment Co., Ltd.

Contact Now

40T Steel Trackless Battery Transfer Cart For Industrial , Customize Table Size

Name: 40T Steel Trackless Battery Transfer Cart For Industrial Customize Table Size
Brand: perfte
Price: 8500 USD

China 40T Steel Trackless Battery Transfer Cart For Industrial , Customize Table Size factory

Brand Name : perfte

Model Number : Battery Transfer Cart

Certification : ISO 9001,CE,CCPIT

Place of Origin : Xinxiang-Henan-China

MOQ : 1

Price : $8500-$8000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 60 set per month

Delivery Time : 5-8 work days

Packaging Details : The cart's body is packed with a tarp, and the wheel and parts of the cart will be packed with wooden case.

Rated load (T) : 1-300t

table size : customize

running speed : 0-20m/min

ground requirement : cement floor

control mode : push button control, wireless remold

Motor Power (Kw) : 1.5

Battery Capacity(Ah) : 180-600

charger function : automatic charging

ground clearance : 50

power : battery

Contact Now

40T Steel Trackless battery-powered transfer cart

Description

The 40T Steel Trackless battery-powered transfer cart consists of a power source, gear train, steel structure bearing frame, steering gear, running gear, control system, and fault diagnosis module. Usually, the accumulator is chosen as a power source. The current is supplied to pulling motor through the electric control system, which makes the car start, stop, move forward, move backward, turn around and realize other functions.

40T Steel Trackless Battery Transfer Cart For Industrial , Customize Table Size

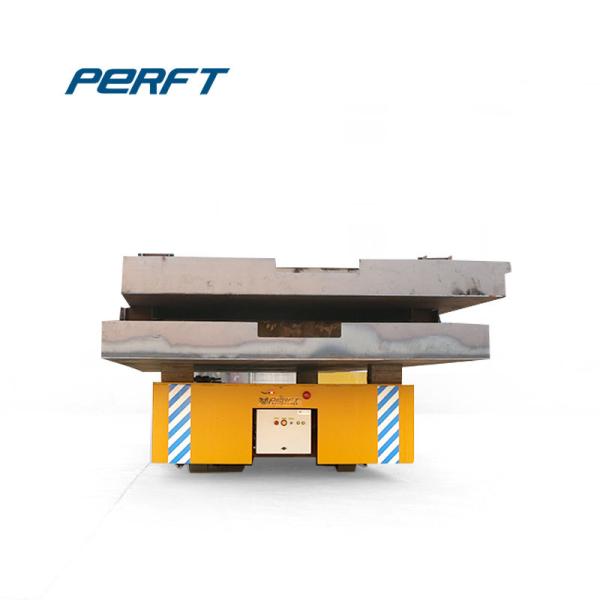

This picture show that the order of our client.

Advantages

The 40T Steel Trackless battery-powered transfer cart has the advantages of simple operation, large starting moment, smooth driving, silent steering, etc. Besides, they also have the unique advantages brought by their structure, they are not restricted by track, and can turn freely from left to right in the flat site, which is convenient to use.

40T Steel Trackless Battery Transfer Cart For Industrial , Customize Table Size

Technical parameters:

Model		BWP-2T	BWP-10T	BWP-20T	BWP-30T	BWP-50T	BWP-63T	BWP-150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground Clearance (mm)		50	50	50	50	50	75	75
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Battery Capacity(Ah)		180	160	180	250	330	400	600
Battery Voltage(V)		24	48	48	48	48	48	72
Running Time When Full Load		4.32	4.8	4	3.5	3.3	3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2
