2T battery transfer cart power line trolley used for transfer heavy cargo or equipment

Product Categories

Henan Perfect Handling Equipment Co., Ltd.

Contact Now

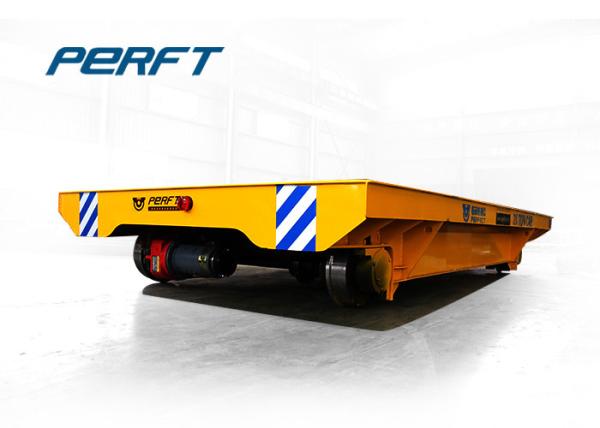

2T battery transfer cart power line trolley used for transfer heavy cargo or equipment

Name: 2T battery transfer cart power line trolley used for transfer heavy cargo or equipment
Brand: PERFECT
Price: 1000 USD

China 2T battery transfer cart power line trolley used for transfer heavy cargo or equipment factory

Brand Name : PERFECT

Model Number : power line trolley

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1 set

Price : USD 1000~20000SET

Payment Terms : L/C, T/T

Supply Ability : 100sets month

Delivery Time : 20 wok days after received balance payment

Packaging Details : trap and wooden case

Product Name : power line trolley

Type : power line trolley

Item : Cart

Material : Q235

Usage : Heavy Duty

Name : power line trolley

Capacity : 2T(Customized)

Certificates : CE ISO SGS

Contact Now

2T power line trolley used for transfer heavy cargo or equipment

2T battery transfer cart power line trolley used for transfer heavy cargo or equipment

This power line trolley is usually used at ship yard, plant and factory, certain production line. The power line trolley could get power from outside or from the battery. The power line trolley was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. power line trolley construction is based on our world renowned die power line trolleys and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our power line trolley is available in a number of configurations specifically designed to suit the needs of our customers.

Technical Parameter of power line trolley

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for Once Charge(KM)		6.5	4.8	4	3.8	3.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

NOTES:

Flat deck or fixtures for transporting special payload;
Custom deck configurations may include lift, tilt, or rotate function;
Payload from 1 ton to 300 tons;
Fixed speed or variable speed capabilities;
On board charging is available if battery drives;
With forward or backing driving;
Options for automatic control;
Available safety equipment includes horn, lights, emergency stop, bumpers and detector.

Technology Progress of power line trolley

2T battery transfer cart power line trolley used for transfer heavy cargo or equipment

Application Sites of power line trolley

2T battery transfer cart power line trolley used for transfer heavy cargo or equipment

Package of power line trolley

Our power line trolley not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. The power line trolley body is packed with tarp, and the wheel and parts of the power line trolley will be packed with wooden case. According the table size and quantity, the power line trolley would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.

2T battery transfer cart power line trolley used for transfer heavy cargo or equipment

Certificates

2T battery transfer cart power line trolley used for transfer heavy cargo or equipment
